Conveyor Steel Roller Belt Conveyor Trough Steel Roller With Great Seal
Roller Dia and Type
1. Dia 60, 76, 89, 102, 108, 114, 127, 133, 140, 159, 194, 219
2. Idler Classification: carrying idler and return idler
3. Carrying Idler: troughing idler, transition idler, impact idler, selt aligning idler
4. Return Idler: flat idler, V type return idler, rubber disc return roller, spiral return roller
Roller Sturcture and Parts
Seal Structure
1 Non-contact labyrinth structure, forming a complex, winding and narrow maze between inner and outer seal part.
2 The maze is filled in high quality grease.
3 Water proof and dust proof performance
Bearing
C3 deep groove radial ball bearing which adopts bidirectional seal structure to improve the performance of water-proof and dust proof.
Shell, shaft and bearing housing
1 Specs of shell and shaft are according to requirements in GB Standard .
2 The tolerance of radial runout, roundness and straightness, and appearance are higher than standard in GB.
3 Bearing housing is produced by stretching the cold-rolled plate.
4 Both-sides precise welding between housing and shell to guarantee the overall strength and stiffness of rollers.
Specifications
| Standard Diameter |
Length Scope(mm)
|
Bearings Type(Min-Max)
|
Shell Wall Thickness
|
| mm | Inch |
| 63.5 | 2 1/2 |
150-3500
| 6204 | 2.0mm-3.75mm |
| 76 | 3 | 6204 205 305 306 | 2.0-4.0mm |
| 89 | 3 1/3 | 6204 205 | 2.0-4.0mm |
| 102 | 4 | 6204 205 305 | 2.5-4.0mm |
| 108 | 4 1/4 | 6204 205 305 306 | 2.5-4.0mm |
| 114 | 4 1/2 | 6205 206 305 306 | 2.5mm-4.5mm |
| 127 | 5 | 6204 205 305 306 | 2.5mm-4.5mm |
| 133 | 5 1/4 | 6205 206 207 305 306 | 2.5mm-4.5mm |
| 140 | 5 1/2 | 6205 206 207 305 306 | 3.5mm-4.5mm |
| | | |
| | 180,190,200,235,240,250,275,280,305,215,350,375, 380,455,465,600,750,950,1150 | 204 |
| | 190,200,240,250,305,315,360,375,380,455,465,525, 530,600,700,750,790,800,950,1150,1400,1600 | 204 205 305 306 |
| | 305,375,380,455,465,525,530,600,700,750,790,800, 900,950,1000,1100,1150,1400,1600,1800,2000,2200 | 205 305 306 |
| | 375,380,455,465,525,530,600,700,750,790,800,900, 1000,1050,1100,1120,1150,1250,1400,1500,1600,1700,1800,2000,2200,2500,2800,3000,3150 | 305 306 308 |
| | 2200,2500,2800,3000,3150,3350 | 308 310 |
| | 600,640,1050,1120,1600,1700,3150,3350 | 308 310 |

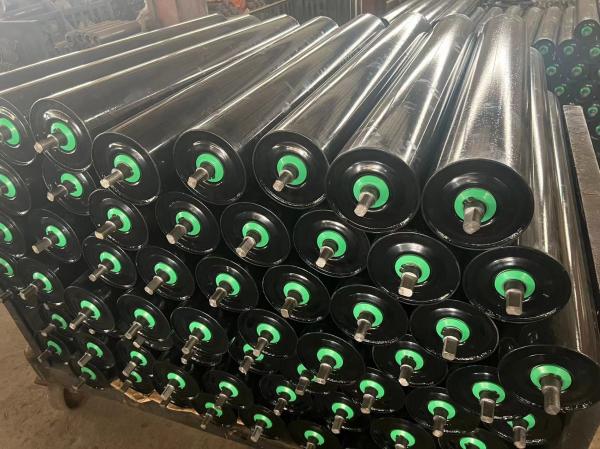

Pictures show
Packing Pictures
