Ceramic Lagging Conveyor Drum Pulley Waterproof Lagged Pulley
Belt Conveyor Tension Roller Tail Drum Pulley With Ceramic Lagging
conveyor will always consist of at least two pulleys, head pulley and tail pulley, with additional pulleys used depending on the configuration. Standard-duty pulleys are usually adequate for simple applications, but mine-duty and engineered pulleys are also available where heavy-duty pulleys are required.
The tail pulley is located at the tail end of the conveyor and it turns freely. Now a "belt" can be put around the pulleys.
The Drive Pulley turns and moves the belt around (and around, and around). But it is dangerous to have the belt hang down under the conveyor bed. So small rollers are put into the Conveyor Bed to hold up the belt.
These turn freely -- and just idle. They are called "Return Idlers".
Product Description
1, This series Drive rollers are welded by steel plate, and using rolling bearings.
2, The surface of drive plulley includes three type: smooth, plastic and cast plastic. Usually the smooth pulley can be used on condition that the power is not big, and the the ambient temperature is low. The plastic surface pulley should be used when it is easy to slip.
The quality of cast plastic pulley is better.Becasue the external surface layer is wear-resistant. The packed plastic drum can achieve the same performance. It's easy to replace rubber surface , easy to maintain.And it's also be considerde affordable and durable.
3, Please refer to the following table for each bandwidth of the roller.
4, The diameter selection of entire core plastic conveyor belt drive pulley is same as the same intensity rubber conveyor belt.
Product Paramenters
| Place of Origin | hebei,China |
| Brand Name | Tail Drum Pulley |
| More Details | Brand Name:BuMtresD
Size:Customized
Material : Rubber
Type : Rubber Lagging/ Ceramic Lagging
Material : SBR/ SBR+ Ceramic
Type for Rubber Lagging : Flat Rubber, Diamond Rubber, Herringbone Rubber
Hardness for Ceramic Lagging : 65 shore A
Type for Ceramic Lagging : Flat Ceramic Lagging, Bump Ceramic
Application : Conveyor belt system
Feature : strong adhesion, heat resistance, acid and alkali resistance, corrosion resistance, anti-aging
OEM : Yes
Application:thermal power plants, iron and steel plants, cement plants, fertilizer plants, coking plants, coal cleaning plants, coal mines, petrochemicals plants, mining, paper mills, chemical plants, terminal transfer stations, and other industries. |
| Model Number | SXBMD-PCL |
| Unit Type | Square Meter |
| FOB Price( - )USD | 200-350 / Square Meter |
| MOQ | 1 Unit/Units |
| Port | Shanghai,Qingdao,Tianjin |
| Supply Ability | 10000 Unit/Units per Month BuMtresD reserves the right of final interpretation of all |

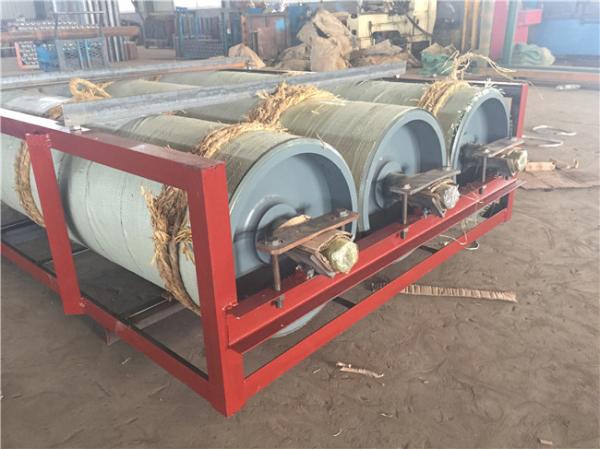

| Packaging Details | Standard plywooden box with pallet |
| Delivery | Lead time: 15-20 days |
| Custom Service | Support for custom service(recommend) |
| Sample Service | Free Samples |
| Specialized service | Private product |
Advantage of pulley :
1. Dust-proof & Water-proof
The contact-sealing is adopted, which enjoys more superior dustproof and waterproof
2. Low Vibration and Noise
Static balance test to ensure G40 accuracy level.
3. Strong Force of Friction
The material for shaft is forged shaft of 40Cr instead of #45 round steel,which improves mechanical property
4. Easy Installation & Simple Maintenance
The bearing block and taper-lock are ground, which ensure the installation precision
5. Min 50000 hours service life
Stress annealing will be done after welding with CO2 gas shielded arc-welding machine, which can ensure the quality of welding line
