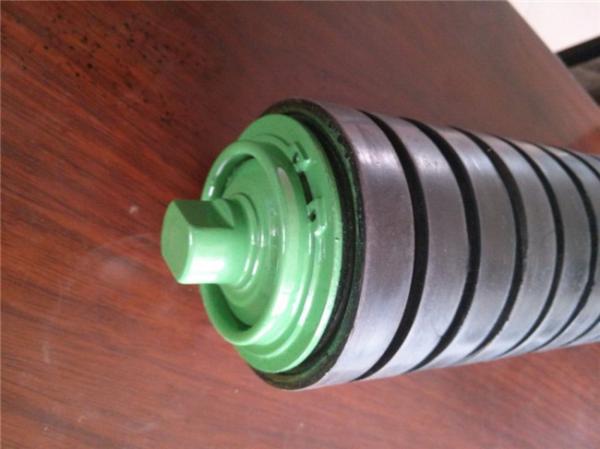

40mm Labyrinth Bearing Conveyor Impact Roller Carbon Steel Pipe
High Performance Rubber Coated Impact Roller For Belt Conveyor
carbon fiber idler roller for conveyor used in roller conveyor system,belt conveyor.Its materials like stainless steel,pvc,metal,iron,galvanized. It consists of roller axle,roller body.
Buffer roller used for belt conveyor by the material at slow blanking impact on the conveyor belt , and developed mainly for coal washing , coking plants, chemical plants , and other corrosive environments idlers , buffering idlers toughness is more than 10 times that of ordinary metals , life as a traditional roller five times , corrosion-resistant flame-retardant , antistatic , weight light and other characteristics , widely used in mining.
Impact idler surface by heat curing rubber surface , and it has a wear-resistant , impact resistance, anti-aging , noise-free ,
anti-static , high flexibility , self-lubricating tear conveyor belt , reducing resistance suitable for long distance transport to
reduce energy consumption and other notable features .Mounted on the conveyor by the feed section of the bottom, to reduce the
impact on the conveyor belt, and to extend the conveyor belt life .
Product parameter
| Diameter | 63-219mm |
| Length | 190-3500mm |
| Material | Iron, Rubber, Nylon, HDPE, etc |
| shafts diameter | from 20 to 40mm |
| tube material | carbon steel pipe, rubber, HDPE or UHMWPE |
| tube diameter | 63-219 mm |
| tube wall thickness | 2-5mm or more than 5mm |
| tube length | 190-3500mm |
| shaft diameter | 20-40 mm or as drawing |
| shaft external | 10-40 mm on each side or as drawing |
Type of metal conveyor rollers:
1. Flat/Carrier/Carrying Rollers: Used to handle bulk&unit material.
2. Impact Rollers: Installed at the loading point to absorb the shocks and to help protect against belt damage.
3. Return Rollers: Used to sustain and support the belt during its return section and performs a cleaning action
--- Return rollers with Spaced Rings (Rubber Disc Rollers)
--- Return Rollers with Helical Rubber Rings (Spiral Rollers)
4. Self-aligning/Training Rollers: Used to adjust the belt deviation, preventing hunting and ensuring stable operation of conveyor belt.
--- Tapered self-aligning rollers
--- Friction self-aligning rollers
